Electric heat source,
Rotary kiln type

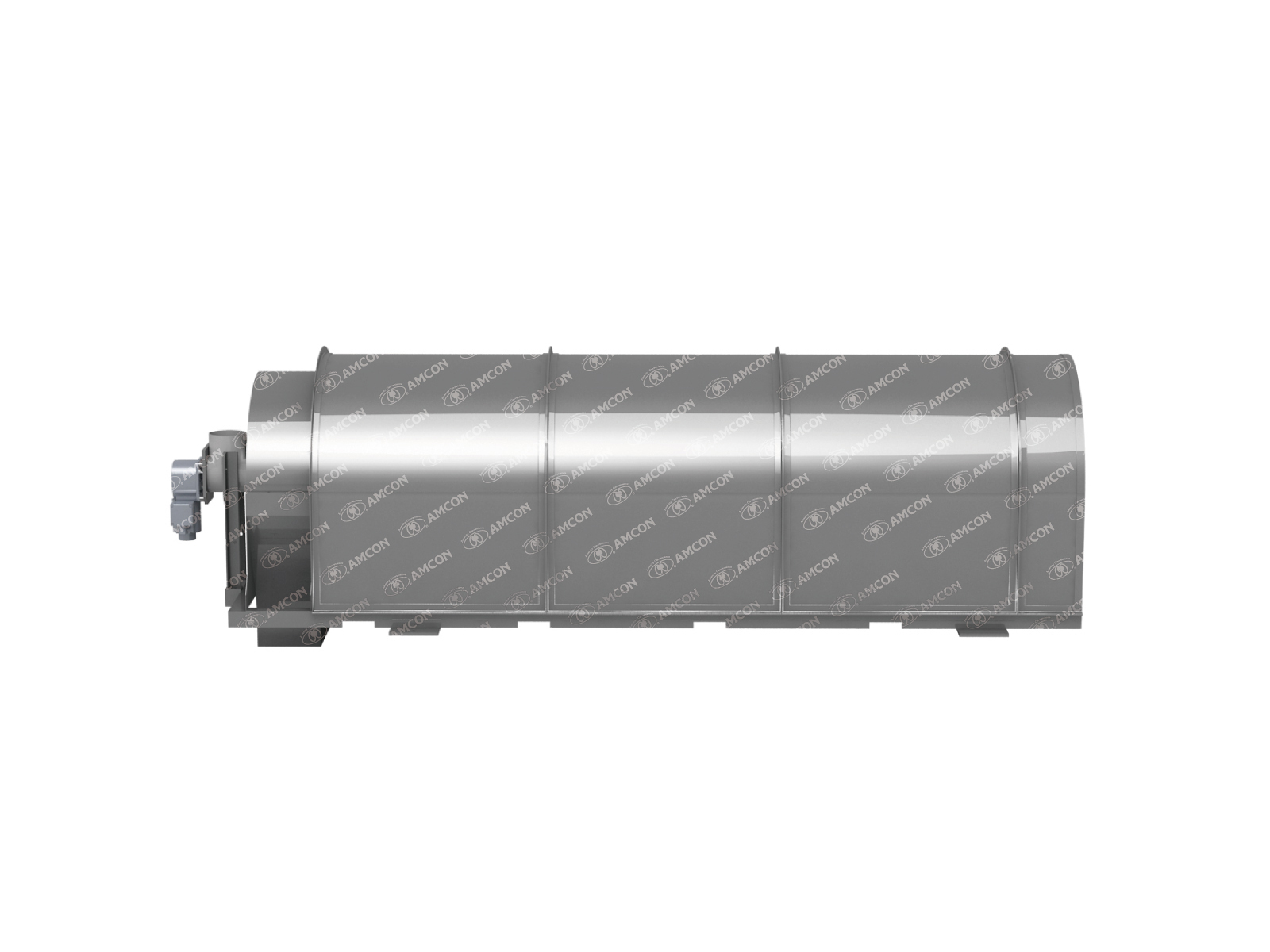

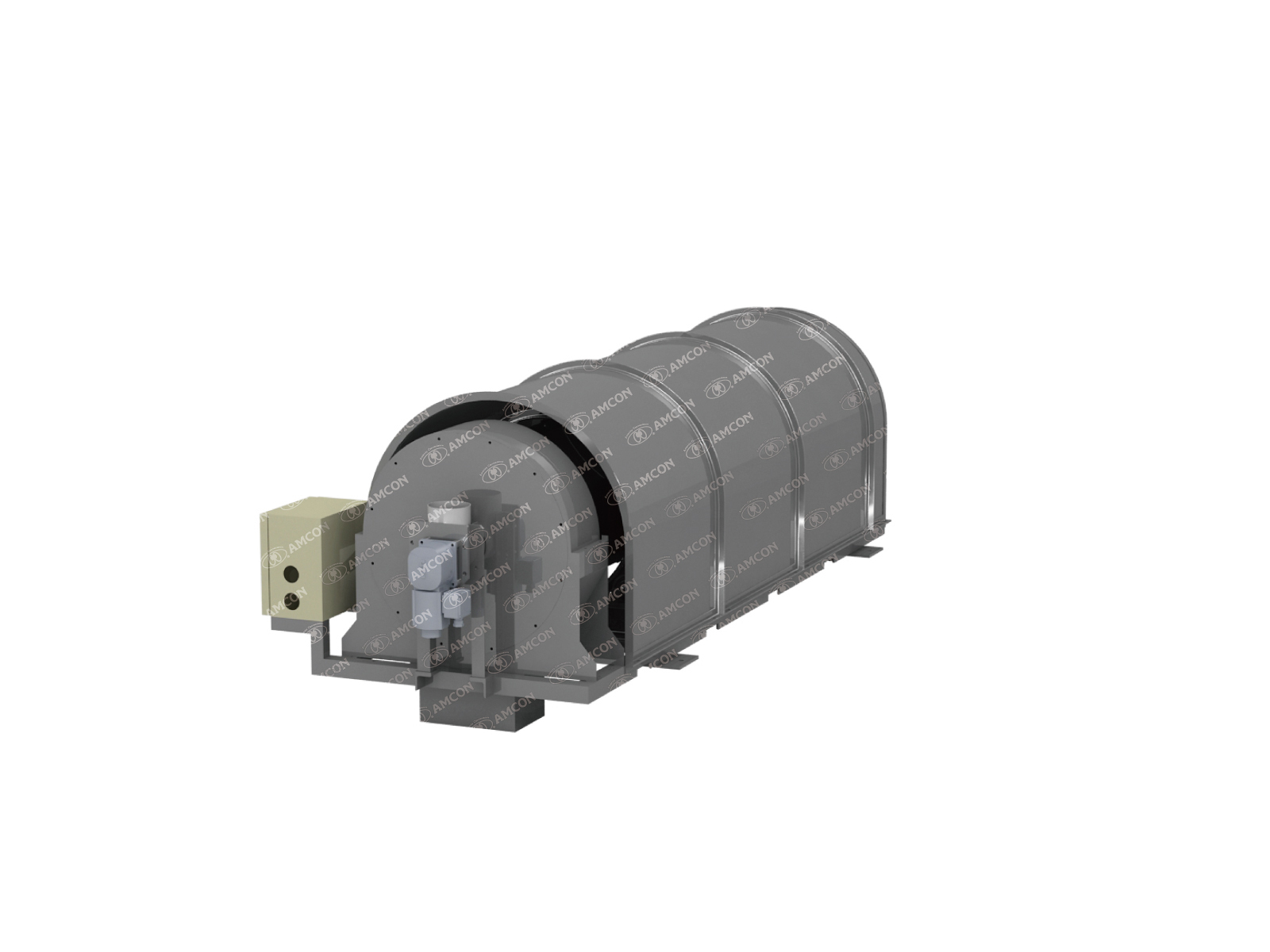

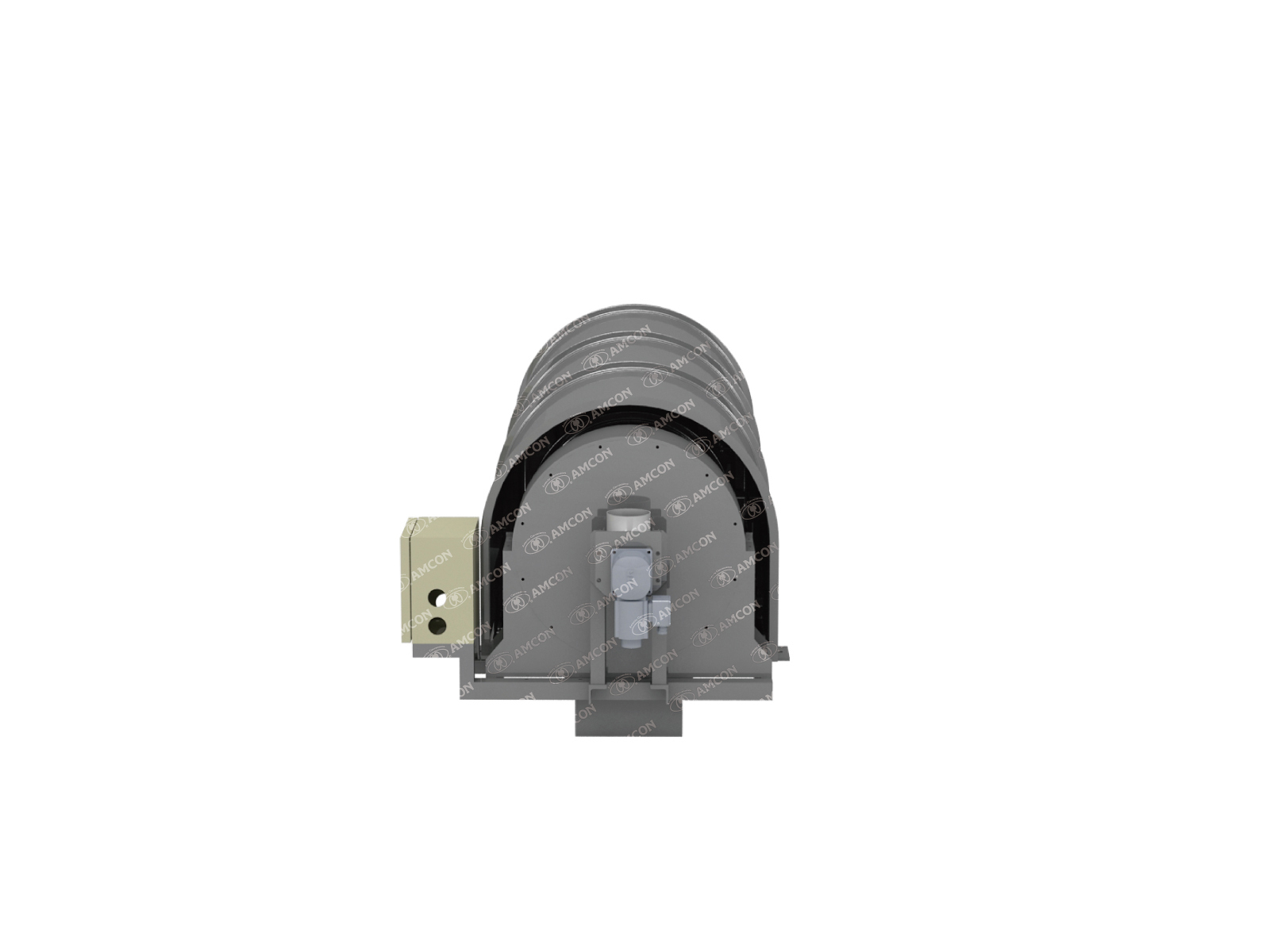

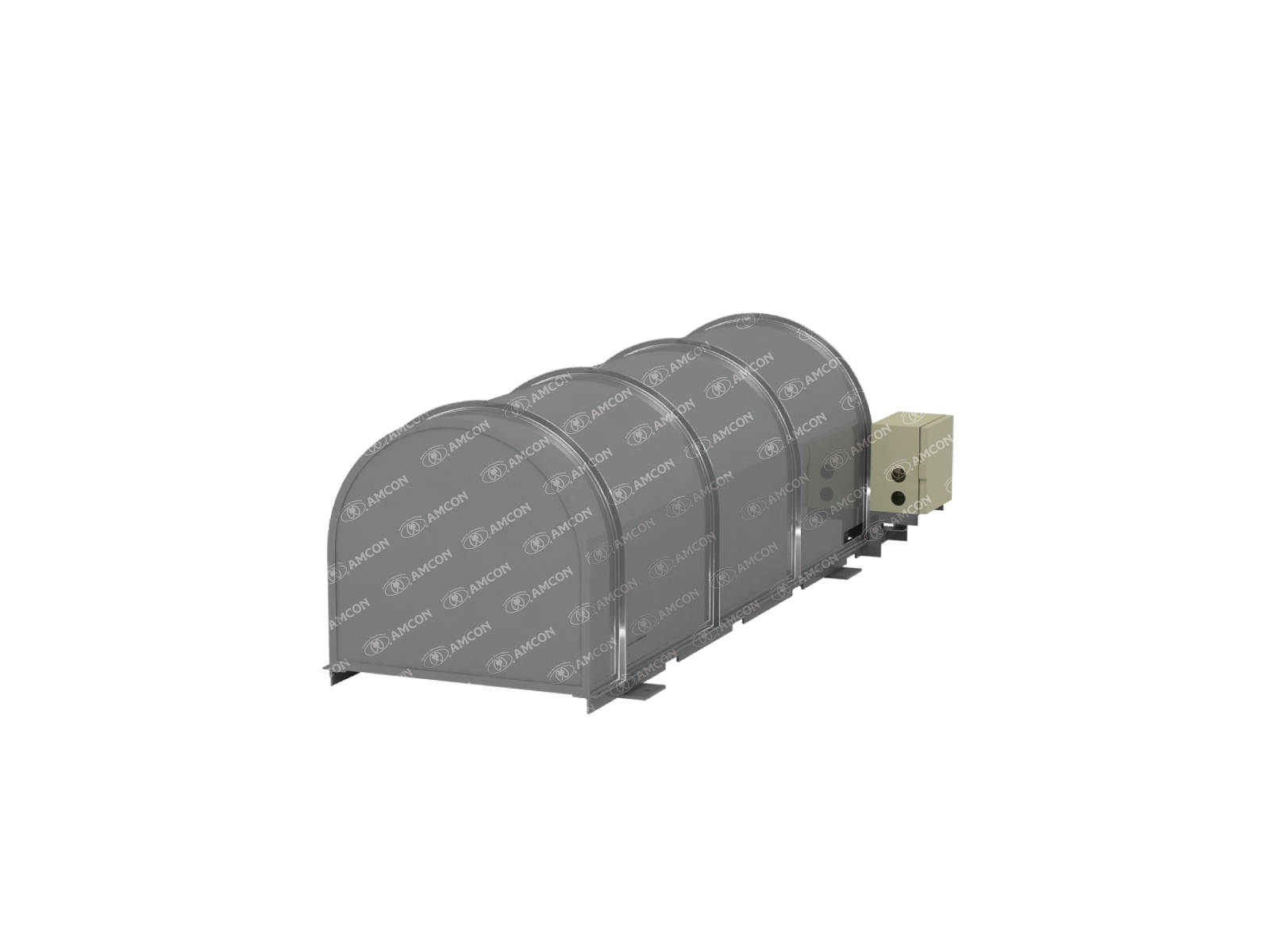

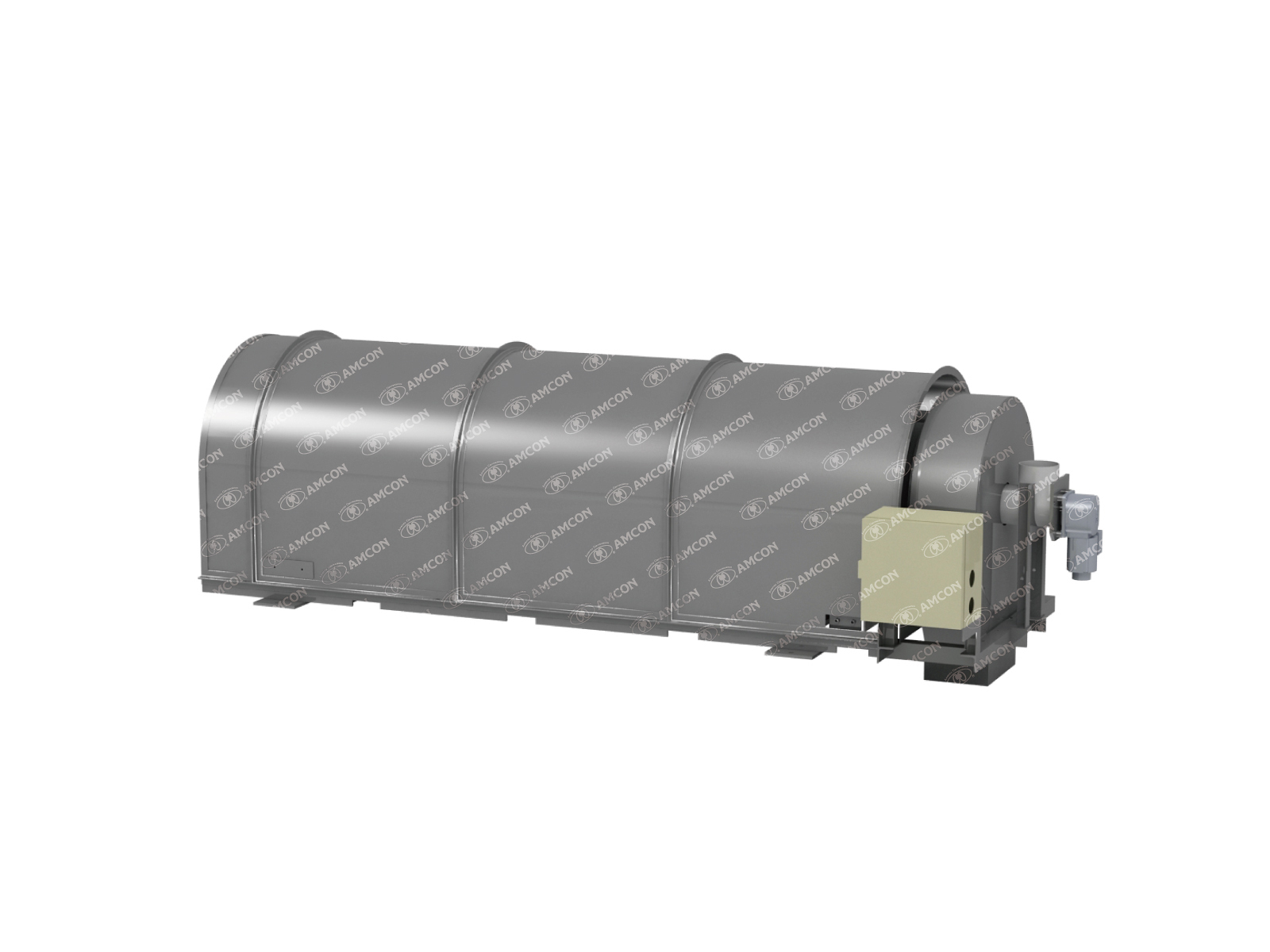

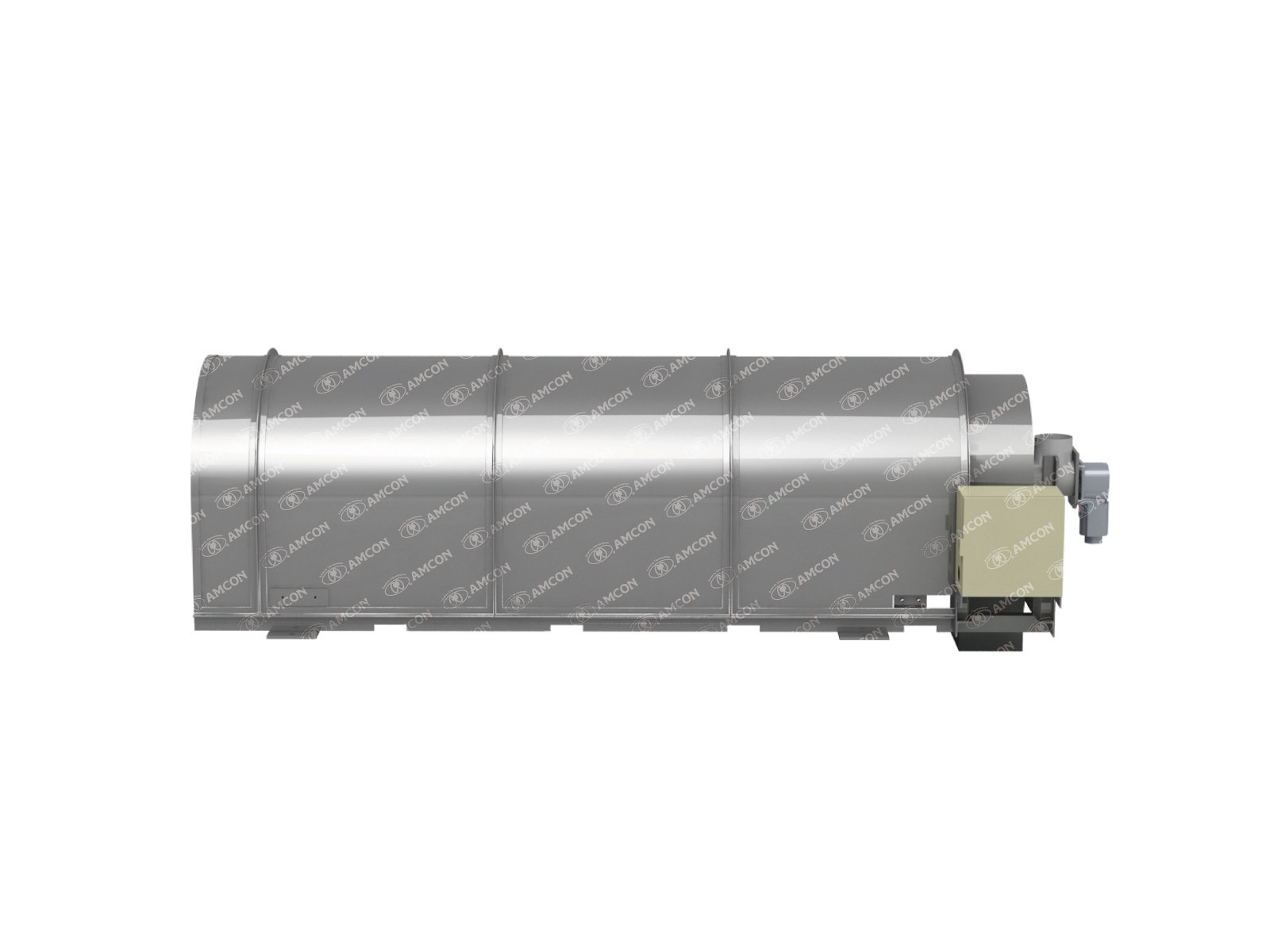

Sludge Dryer SP Series
This system can convert waste activated sludge and chemical sludge into dried sludge with a water content of 10 to 40%, reducing the amount of the waste sludge. High thermal efficiency is achieved with the direct contact of the the dewatered cake to the heat source. The unique double layered drum structure ensures a sufficient drying area while providing a compact design.
Significant Reduction of Waste Sludge Volume
By drying the dewatered cake with a water content of about 80% to the water content of 10 to 40%, the dryer significantly reduces the amount of waste sludge. Your sludge disposal cost is greatly reduced.
Water Content and Weight of Sludge
| Sludge Condition | Moisture Content | Sludge Cake Weight |
| Raw sludge | 99% | 10000kg |
| Thickened sludge | 96% | 2500kg |
| Sludge cake | 83% | 588kg |
| Dried sludge | 40% | 167kg |
| 30% | 143kg | |
| 20% | 125kg | |
| 10% | 111kg |
*Trial calculation for solid content of 100 kg-DS
Compact Design and Easy Installation
When combined with the VOLUTE™ Dewatering Press, the dewatered cake discharged from the dewatering machine is fed directly into the dryer which produces the dried cake continuously. Large-scale operating systems such as storage hoppers, large drying tanks, and motors are not required.
In addition, the unique double layered drum structure ensures sufficient drying area.
Its compact design makes it suitable for small facilities, and the installation is also easy.

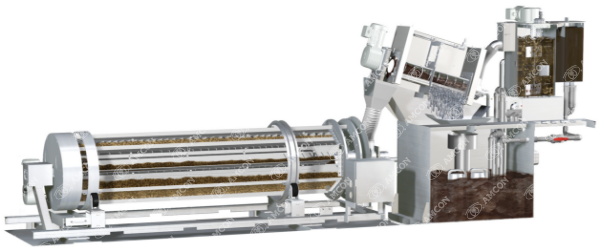

VOLUTE™ Dewatering Press + SP series Example of combined layout

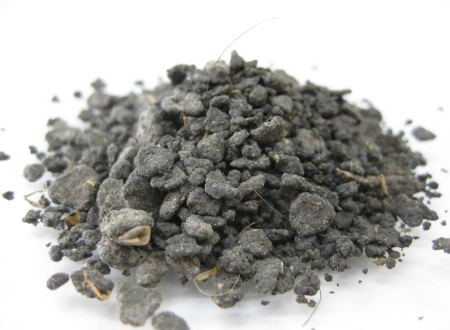

Sludge Discharged in Flake Form for Easy Handling
Dry sludge is continuously discharged in a flake form.
Discharging the dried sludge in this form reduces the scattering of the sludge and eases handling.
In addition, dried sludge with low water content is less likely to decompose than dewatered cake, making it less likely to produce foul odors when temporarily stored.
Process Flow

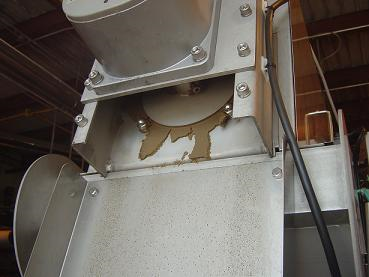

Discharge of Dewatered Cake
The dewatered cake with a water content of about 83% discharged from the sludge dewatering press is continuously fed into the dryer.
Inside of the Dryer
Dewatered cake fed to the dryer is gradually dried in the drying drum.
Dried Cake
Dried cake with a water content of 10 to 40% is discharged.
Feel free to contact us. After collecting information about your treatment process, sludge volume, operating hours, and other conditions, we will select the most suitable model for your sludge and your concerns. During sample test, we will simulate the amount of chemicals to be dosed, the estimated water content of the dewatered cake, dried cake, etc. After determining the specifications and ancillary equipment, we will start producing the equipment. Our sales representative or service engineer will perform operational adjustments at your wastewater treatment plant and you will check how to operate the system before we hand over the equipment.
