- Uniaxial Screw-Type Pump AHLEX
For sludge transfer, chemical dosing
and sludge cake pressure pumping

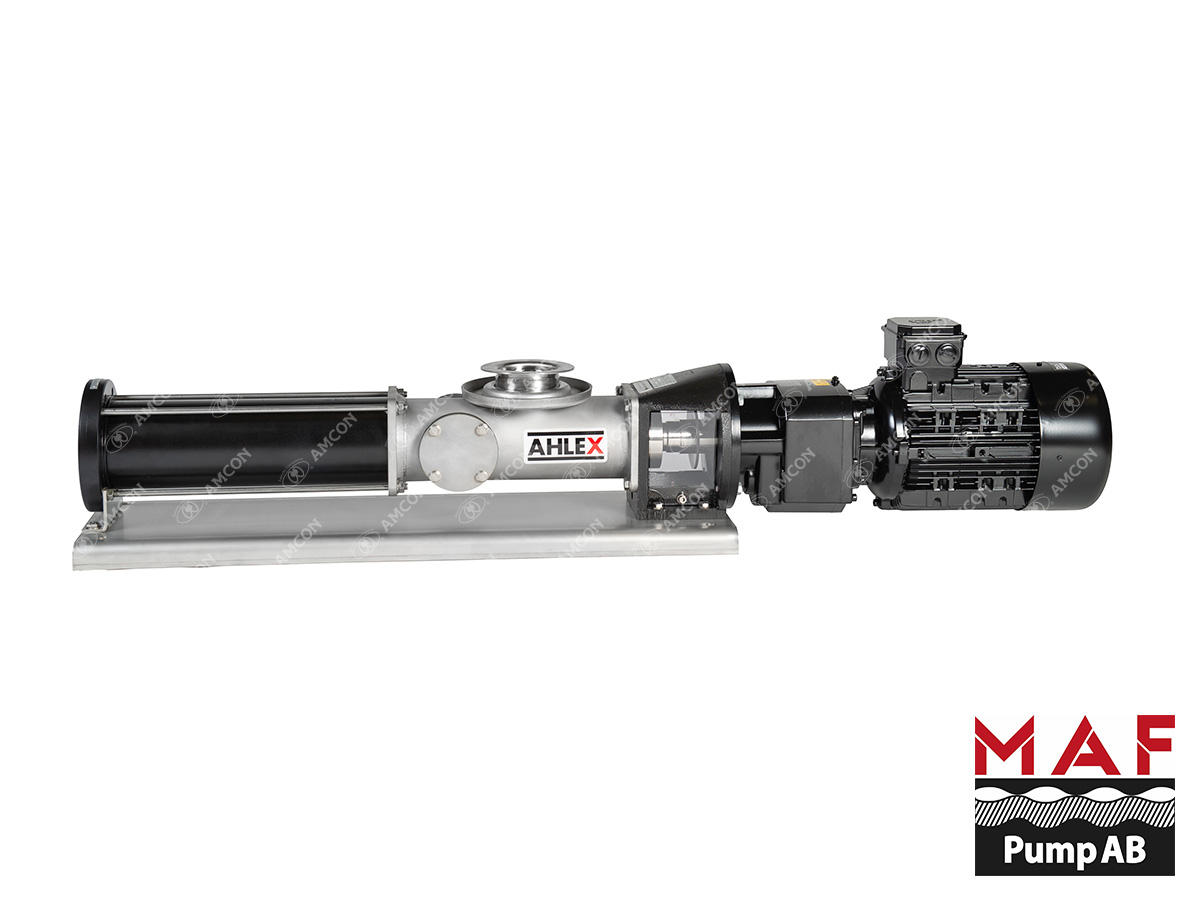

Uniaxial Screw-Type Pump AHLEX
This pump which is manufactured by Swedish company MAF Pump, ensures a stable, pulsation-free, and accurate feed regardless of fluctuations in sludge concentration or liquid viscosity. Its vibration-free operation minimizes stress on piping and equipment, eliminating the need for an air chamber. It is suitable for a wide range of applications, including high-concentration sludge, chemical dosing, and the transfer of dewatered sludge cake. With a maximum discharge pressure of 1.2 MPa (BC Series), it meets the diverse demands of sludge treatment operations.
Provide a Stable Non-pulsating Flow of Liquid
Unaffected by fluctuating sludge concentration, it can provide a stable non-pulsating flow of liquid.
Due to its non-pulsating mechanism, structually, it cannot vibrate, thus minimizing the strain and toll on the support sections such as piping and connecting joints. Air chamber is not required.
In addition, it is well-suited for precise dosing, as it is relatively unaffected by factors such as changes in liquid level on the suction side, pressure fluctuations on the discharge side, or variations in the particle size of the liquid fed into the pump.
Suited for High-concentration Sludge, Precise Chemical Dosage & Transportation of Dewatered Cake
Expect consistent suction even with high density sludge due to the pump’s powerful suction of up to 0.6Mpa. Also handles dosing for both polymer and inorganic flocculants with easy control of the flow rate.
Capable of transporting dewatered cake with poor fluidity, such as cake with moisture content between 72%-85%. (MAX1.2MPa)
Specifications

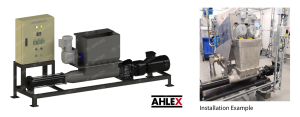

Sludge Cake Pressure Pump BC Series
| Model | L(mm) | W(mm) | H(mm) | Total Power(kW) | Discharge port | Pump Capacity(m3/h) | Max DP* | Weight(kg) |
| SE 102 BC | 1750 | 550 | 1300 | 1.9 | 65A | 0.05～0.3 | 1.2 | 90 |
| SE 202 BC | 2150 | 620 | 1300 | 2.6 | 80A | 0.1～0.5 | 1.2 | 190 |
| SE 382 BC | 2550 | 670 | 1300 | 3.75 | 100A | 0.25～1.5 | 1.2 | 300 |
| SE 752 BC | 2950 | 720 | 1300 | 7 | 125A | 0.5～3.0 | 1.2 | 460 |
*Discharge Pressure
*The stated capacity (m3/h) is an approximate value based on pumping sludge cake with a moisture content of 72% or higher.
*The pump can convey sludge cake through piping up to a vertical head of 15m and a horizontal distance of 40m. For applications exceeding these limits, please consult us regarding feasibility.
*Specifications are subject to change without prior notice. Please contact us for the latest specifications.

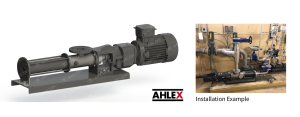

For Sludge / Chemicals BA Series
| Model | L(mm) | W(mm) | H(mm) | Total Power(kW) | Inlet | Discharge port | Pump Capacity(m3/h) | Max DP* | Weight(kg) |
| SE 12 BA | 1000 | 200 | 175 | 0.37 | 32A | 20A | 0.1～0.36 | 0.6 | 20 |
| SE 30 BA | 1000 | 200 | 175 | 0.75 | 32A | 20A | 0.2～0.9 | 0.6 | 25 |
| SE 100 BA | 1200 | 240 | 220 | 1.5 | 50A | 50A | 0.6～4 | 0.6 | 50 |
| SE 200 BA | 1200 | 290 | 240 | 2.2 | 65A | 65A | 1.5～9.5 | 0.6 | 60 |
| SE 380 BA | 1500 | 290 | 280 | 3.0 | 80A | 80A | 2.6～16 | 0.6 | 140 |
| SE 750 BA | 1800 | 320 | 290 | 3.7 | 100A | 100A | 4～25 | 0.6 | 195 |
| SE 1001 BA | 1900 | 320 | 320 | 5.5 | 125A | 125A | 8.5～45 | 0.6 | 250 |
*Discharge Pressure
*Control panel can be arranged separately upon request.
*Specifications are subject to change without prior notice. Please contact us for the latest specifications.
