Waste Dry Film Photoresist Dewatering Press
- TOP
- Browse by Product
- Waste Dry Film Photoresist Dewatering Press
- Waste Dry Film Photoresist Dewatering Press TV-50F
Reduces waste photoresist with
high dewatering capacity and helps reduce disposal cost

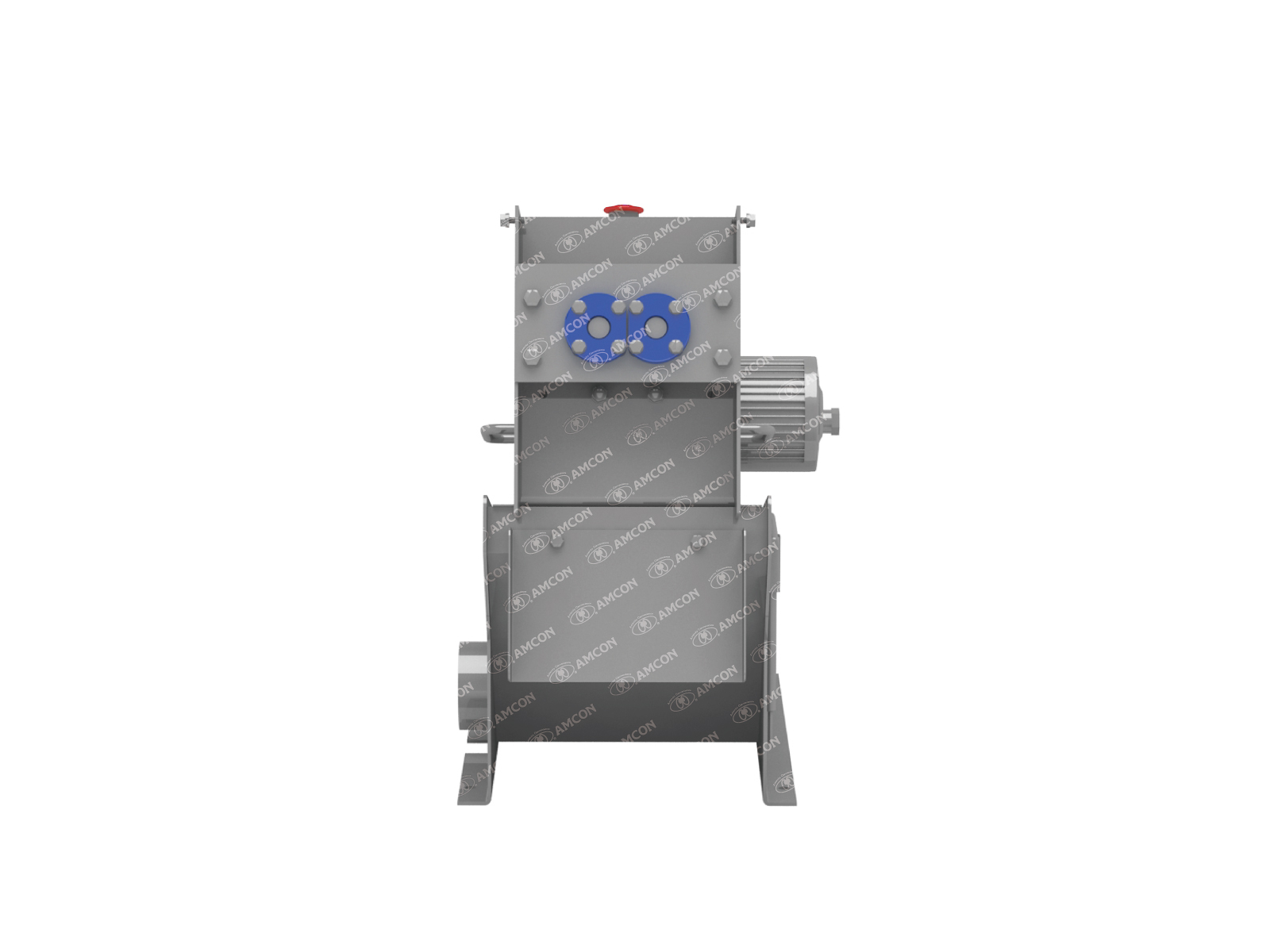

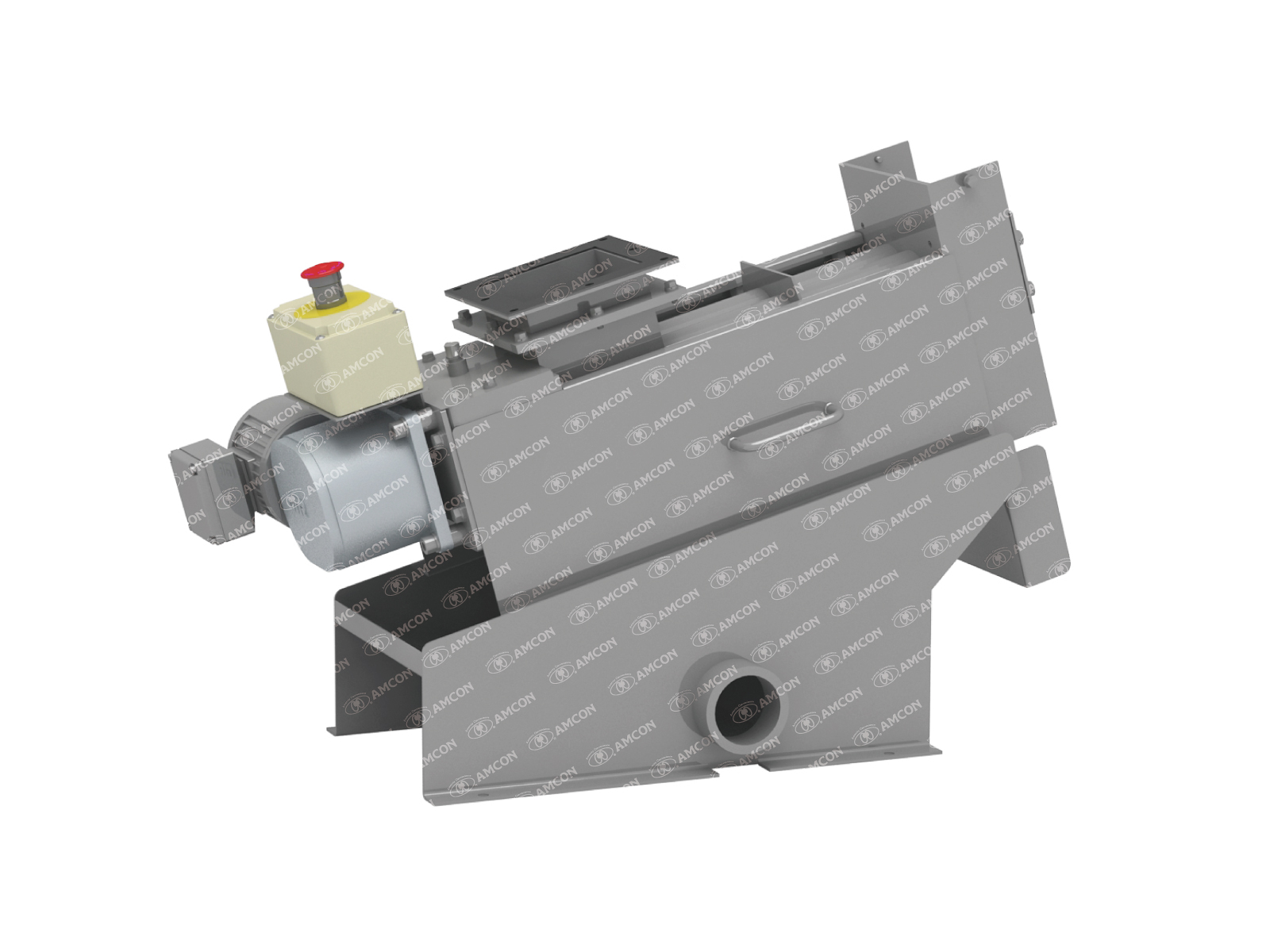

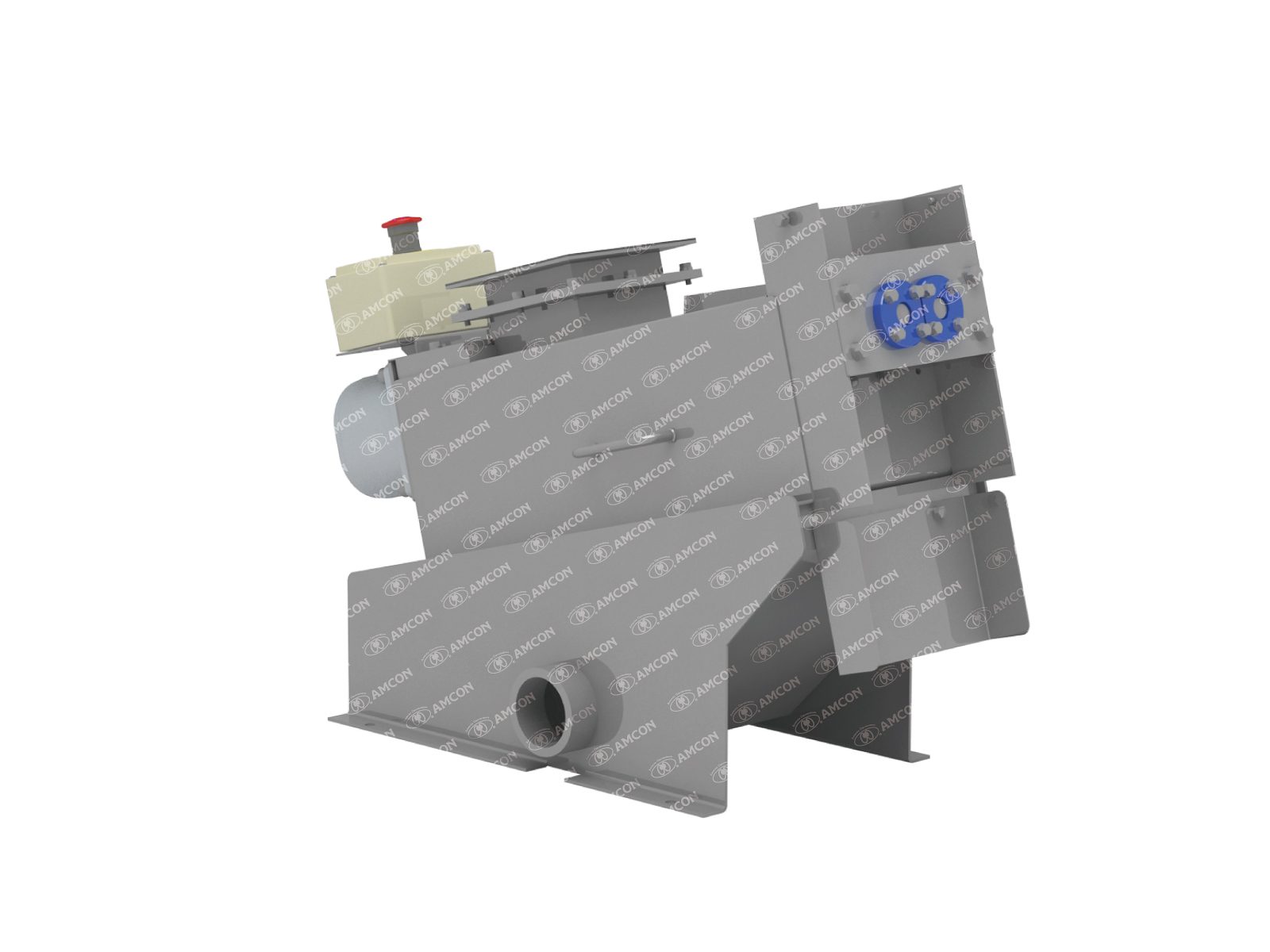

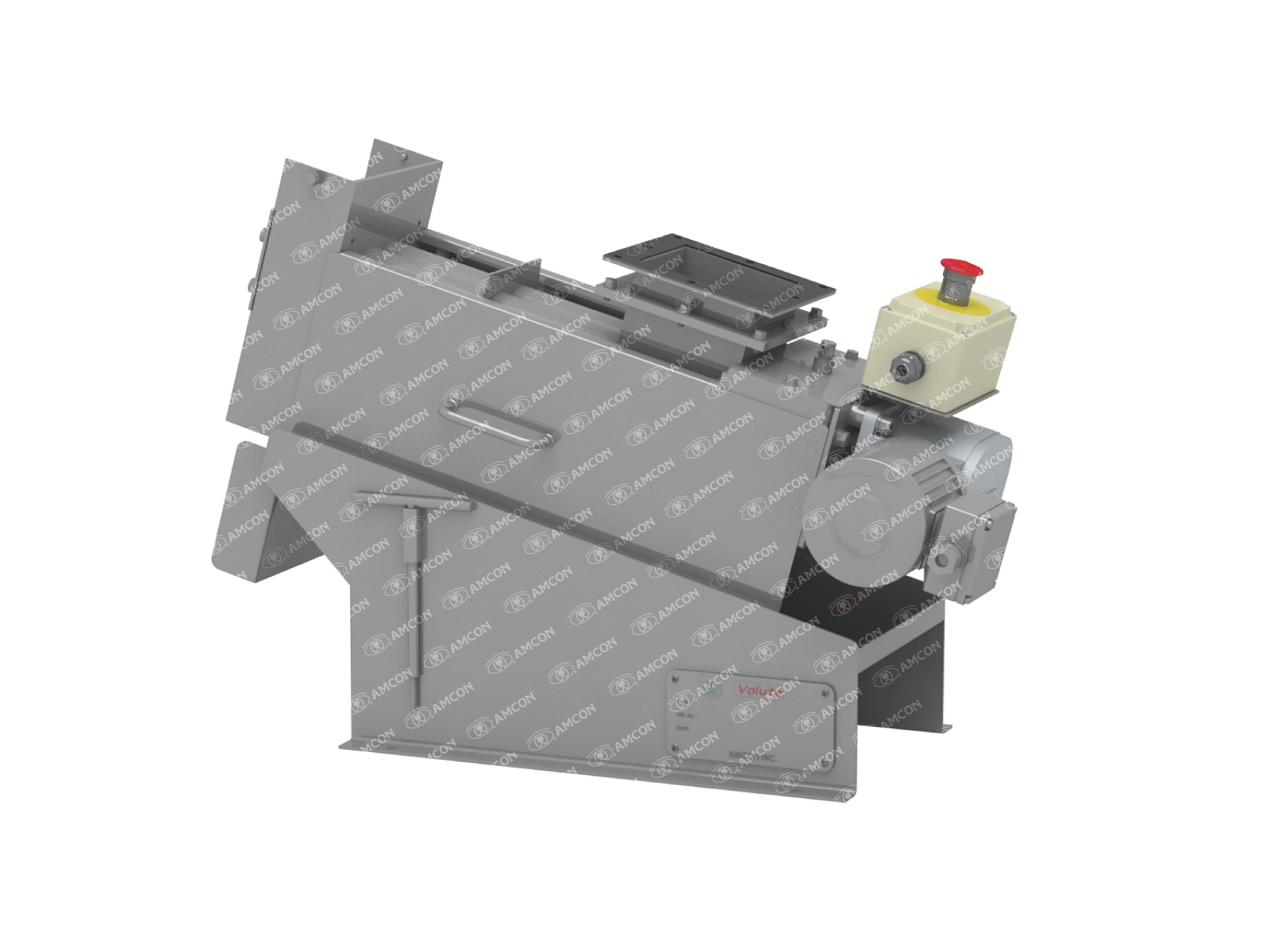

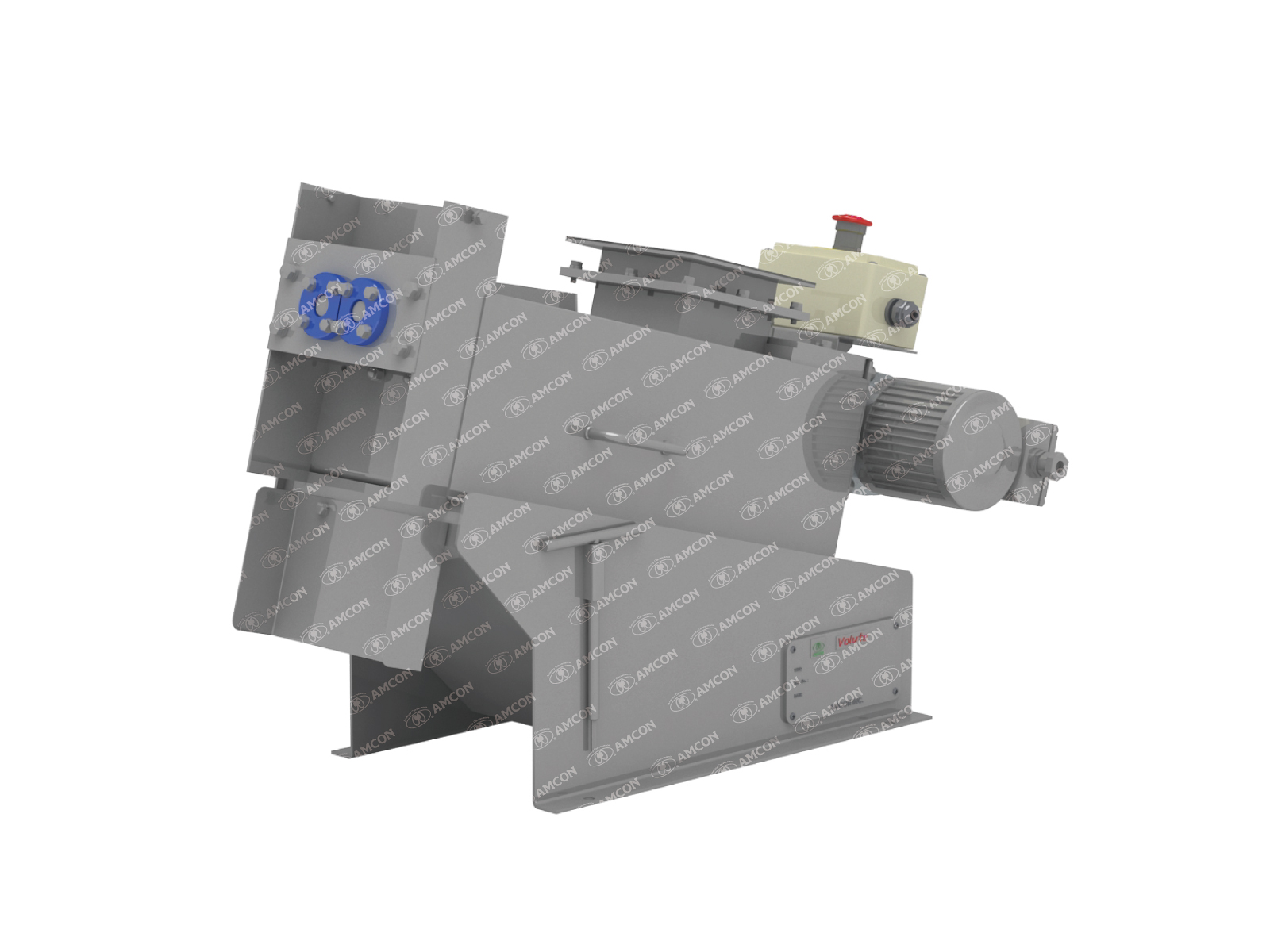

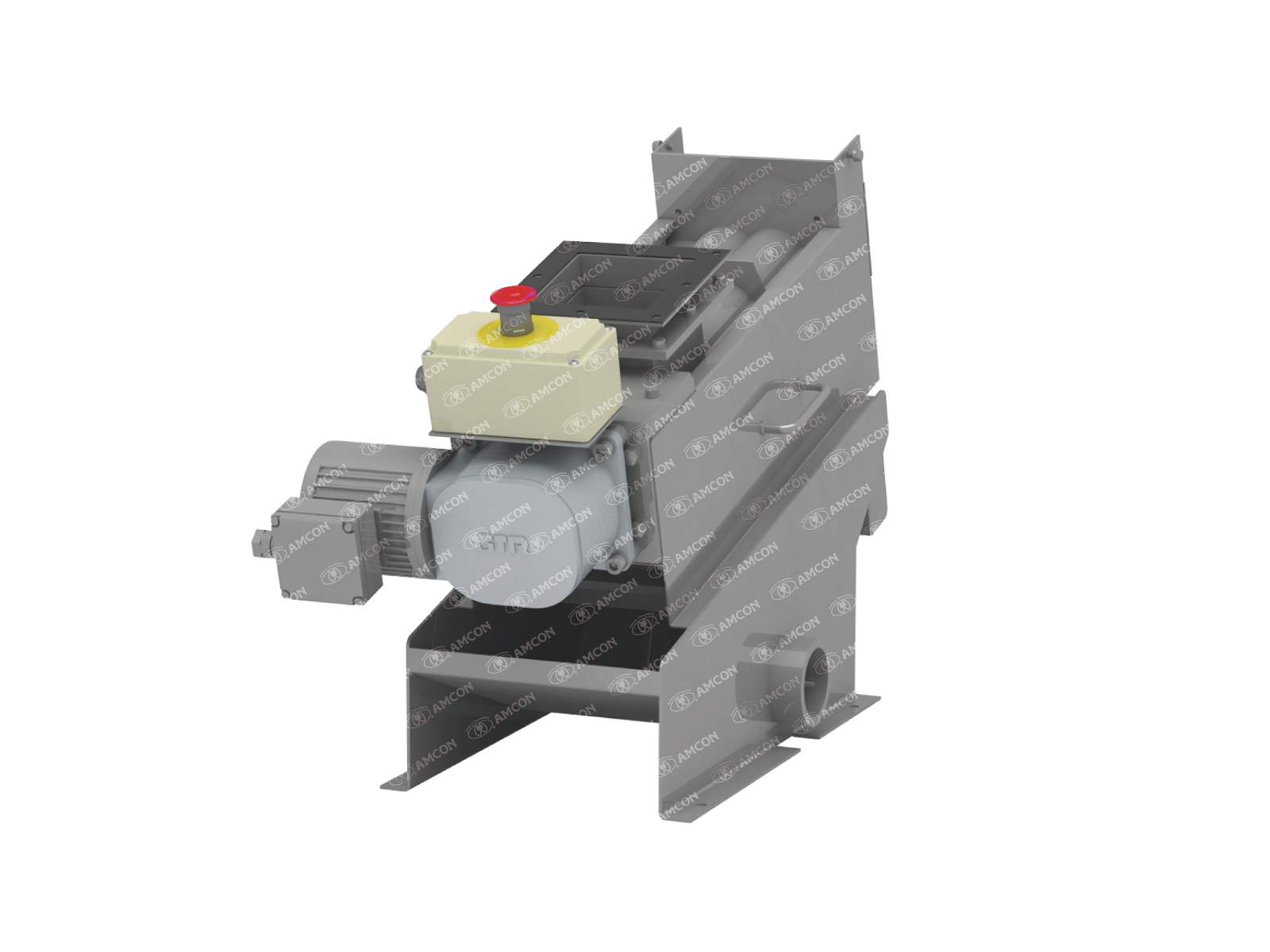

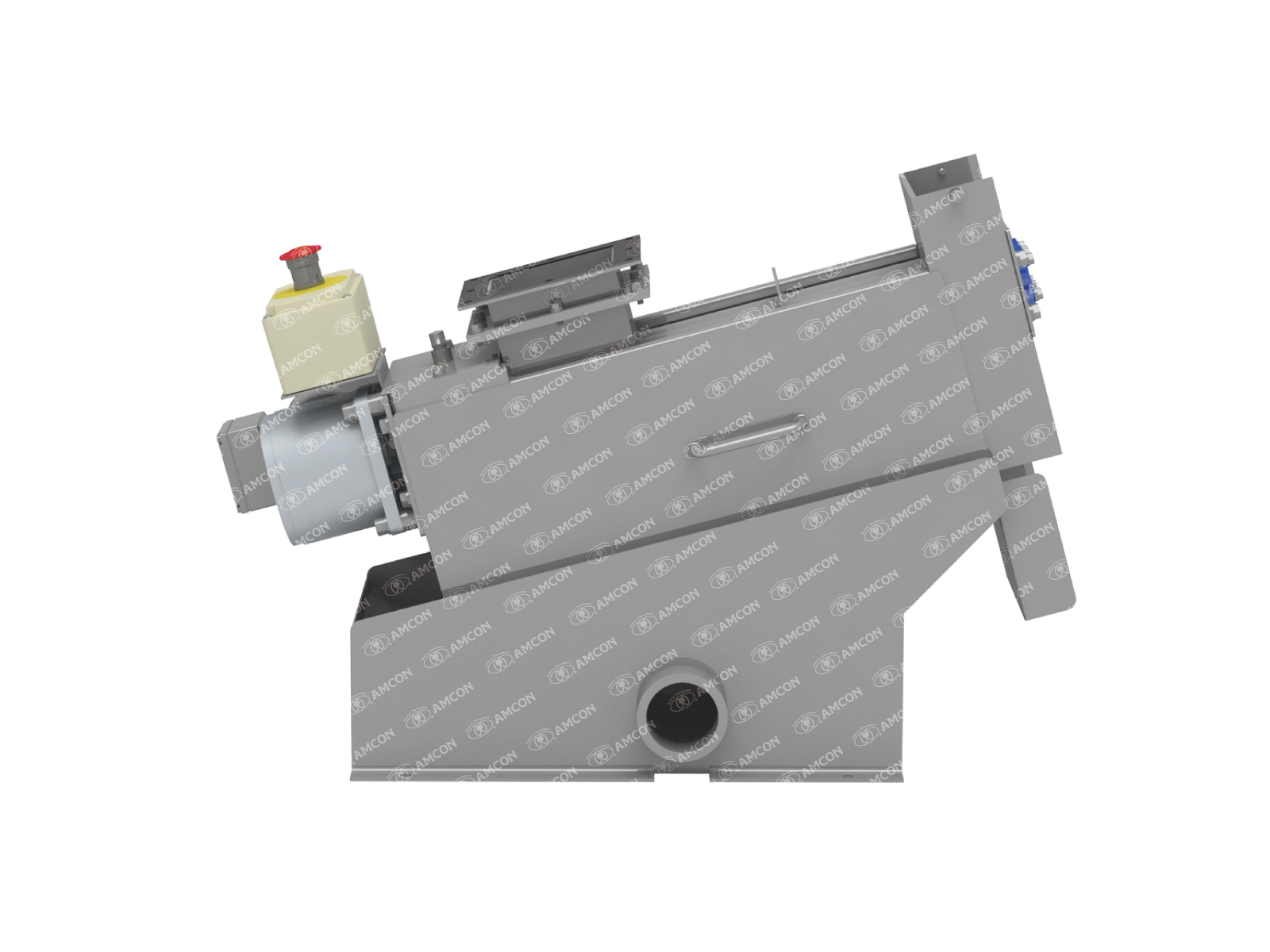

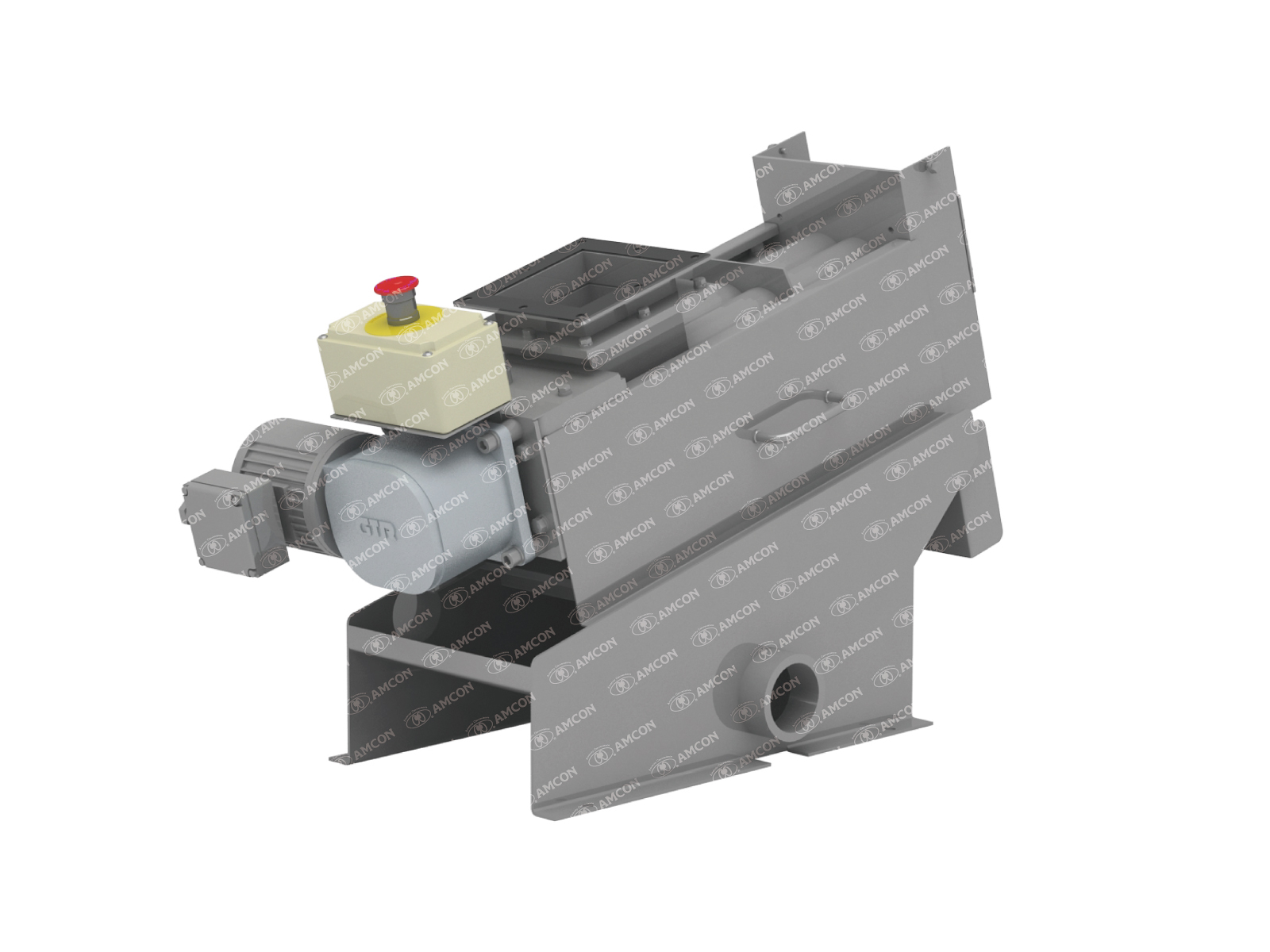

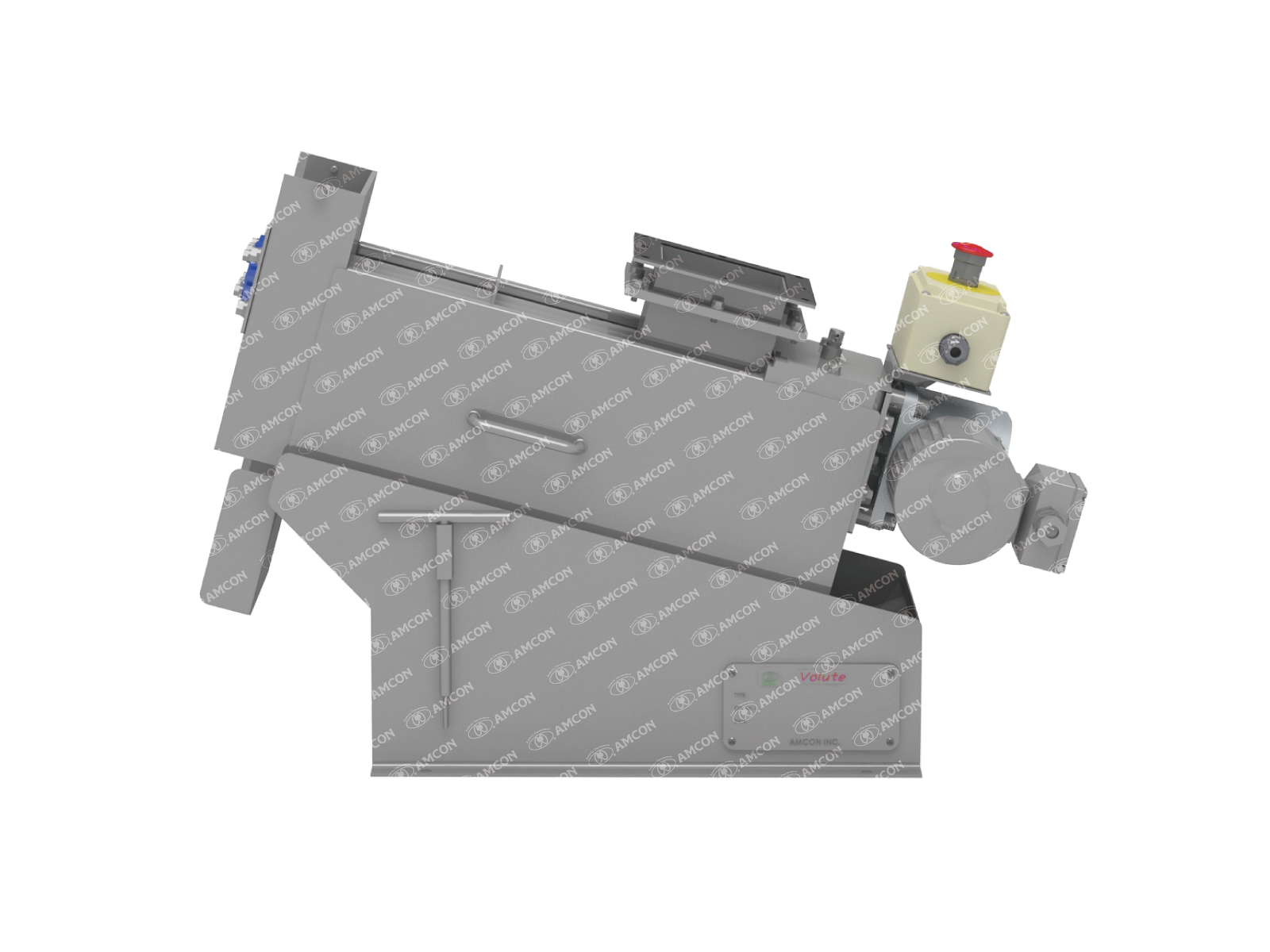

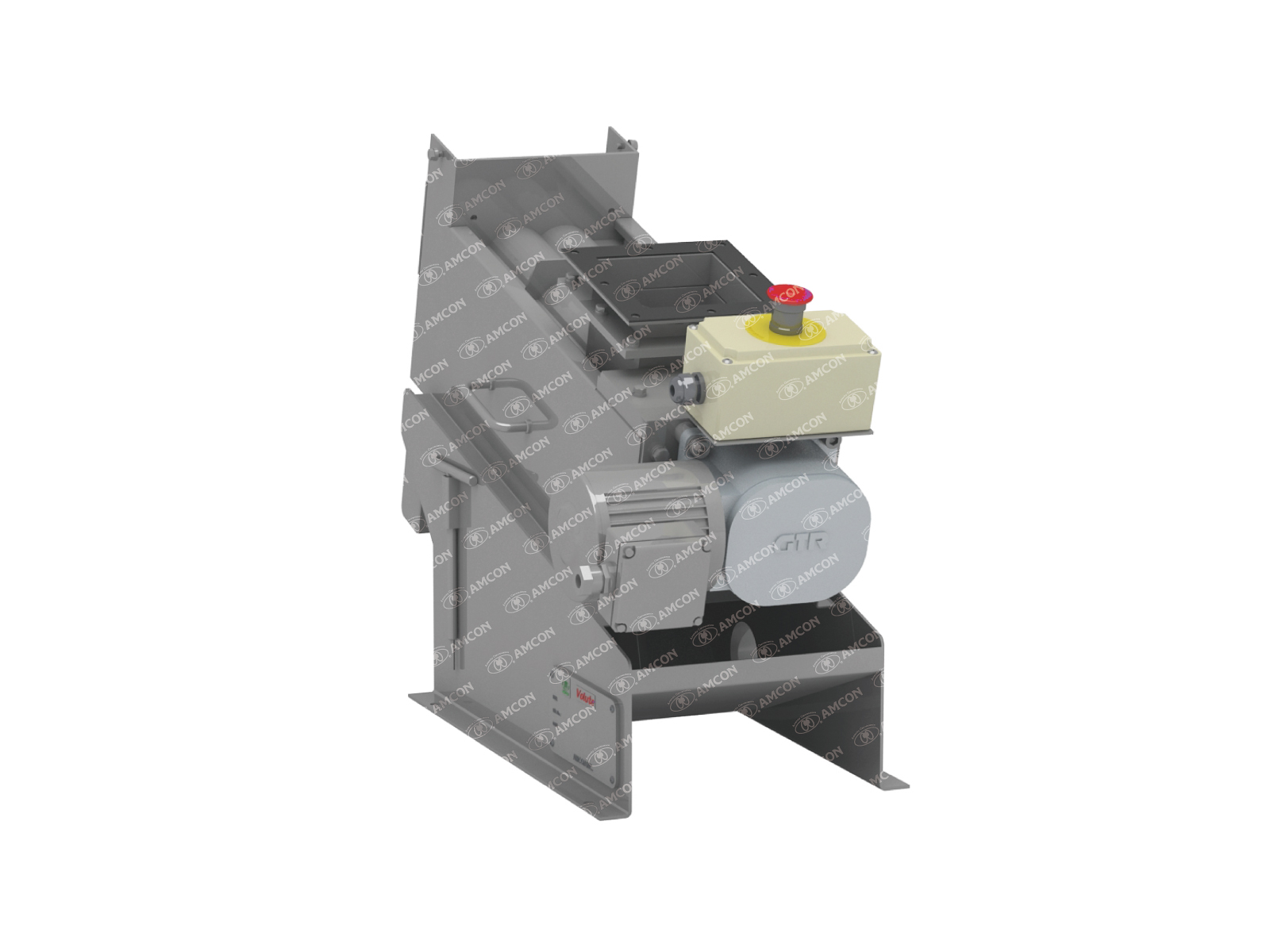

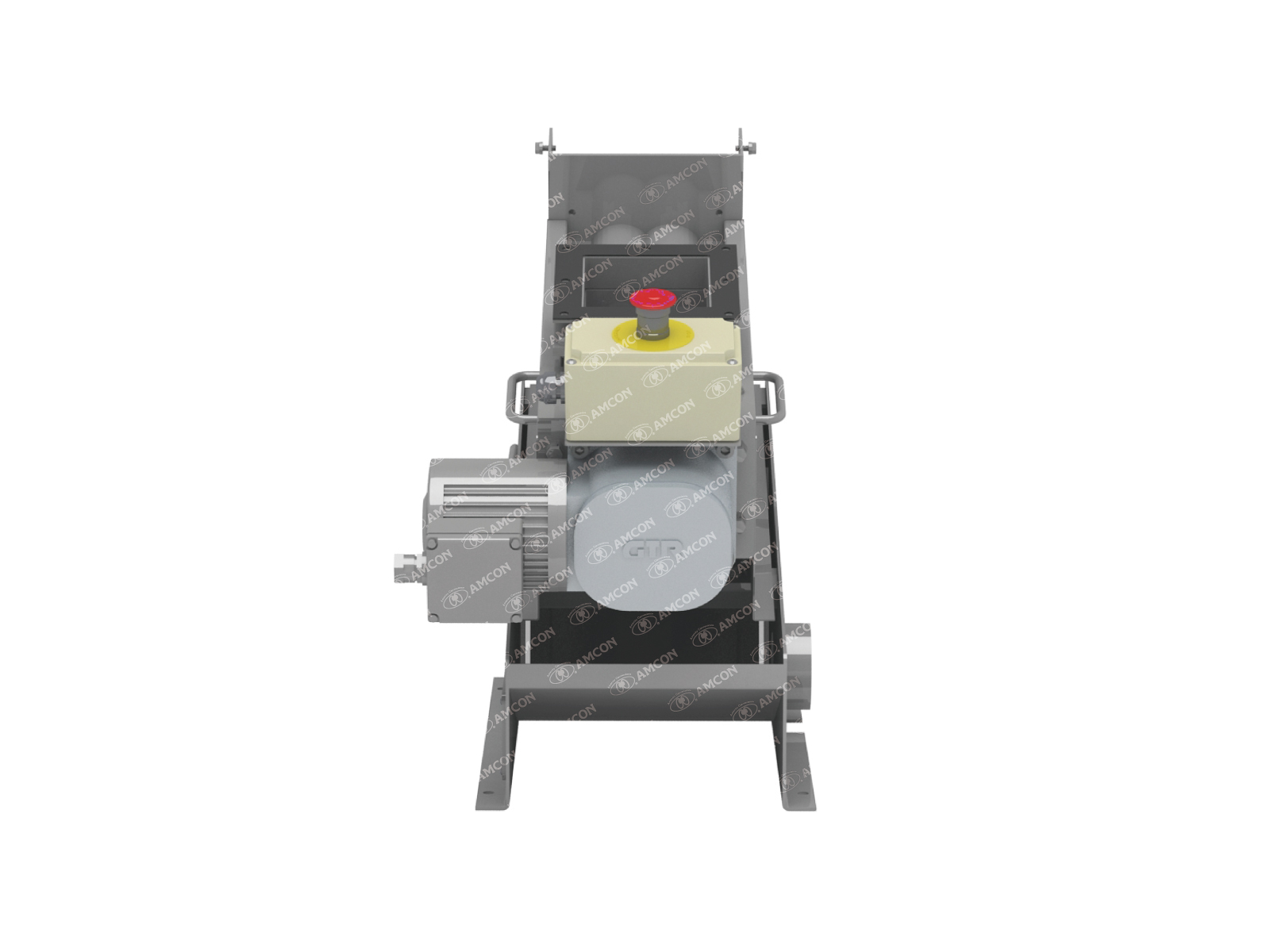

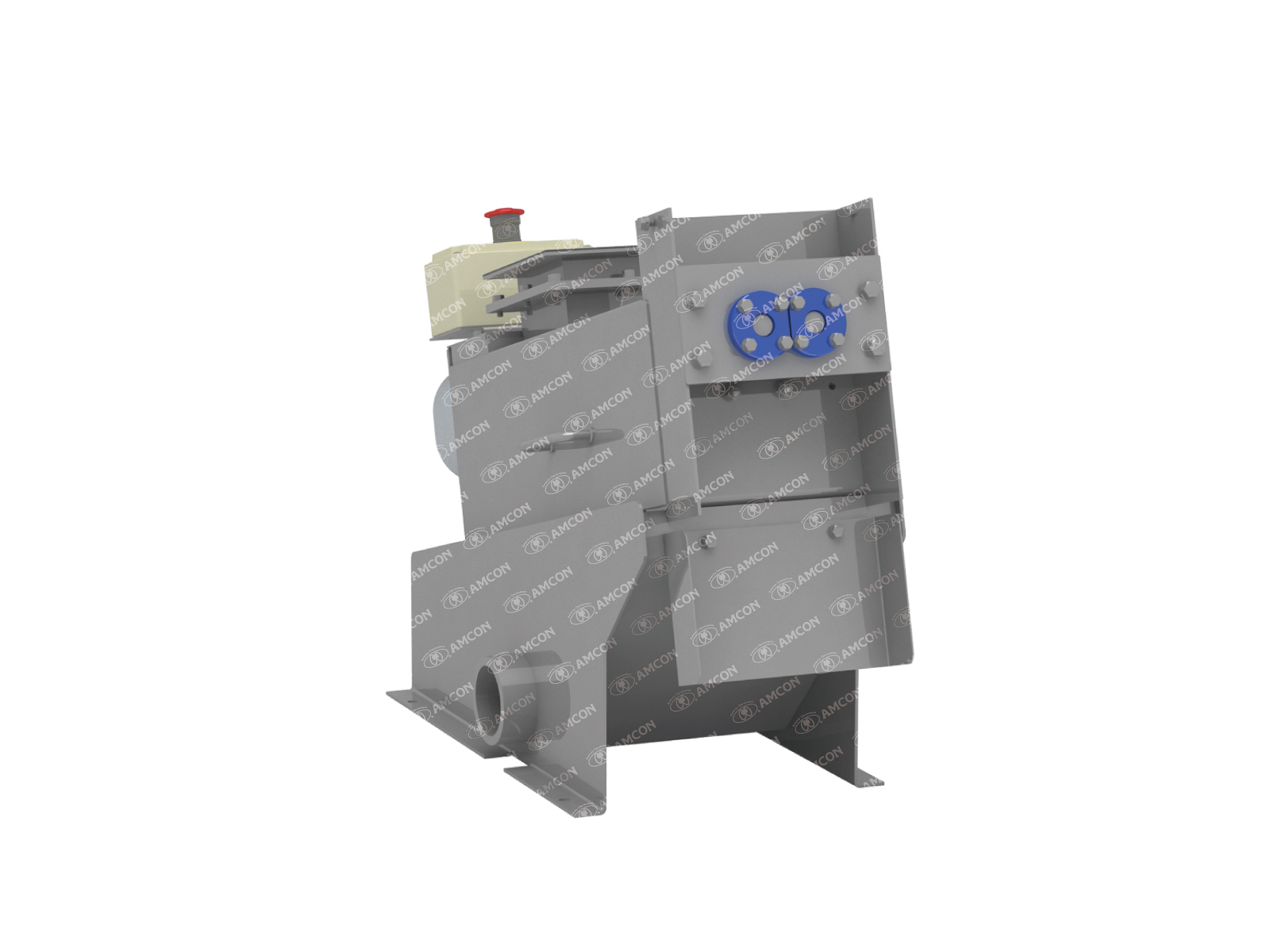

Waste Dry Film Photoresist Dewatering Press TV-50F
TV-50F is designed to dewater waste photoresist generated from photoresist patterning processes, such as PCB manufacturing. The machine is designed compact and space-saving with 844 mm long, 363 mm wide, and 555 mm high. It can be installed in a small space available in your factory.
Advantages
-
Clog-free self-cleaning mechanism -
Reduce disposal cost -
Improvement of work environment -
Power and water saving -
Low Noise/Low Vibration -
Easy Operation & Maintenance
Clog-free

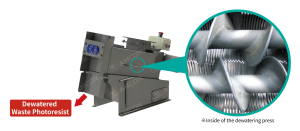

The TV-50F consists of a filter and two screws passing through the filter. The filter comprises two types of rings, fixed and moving rings. The screws convey and compact waste photoresist. The flights of the screws overlap each other. The rotating flights cut into the waste while the waste is flowing towards the outlet. This design helps achieve high dewatering efficiency and stable dewatering treatment.
Reduce Disposal Cost

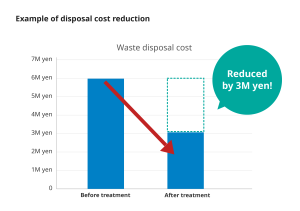

Waste disposal cost is reduced by dewatering waste dry film photoresist containing photoresist remover and reducing the amount of waste to 30% to 65%. Reduction in the amount of waste will also shorten the time required for transportation and disposal.
| Production capacity | 360,000㎡/year（30,000㎡/month） |
| Waste generation | 60t/year |
| Waste disposal cost | 100 yen/kg or 20,000 yen/drum |
| Waste redution by dewatering | 50% |
| Dewatering capacity | ～30kg-WET/h |
*This cost estimate does not include transport, equipment maintenance, operation and running costs.
Improvement of Work Environment
Before dewatered, waste dry film photoresist is mixed with photoresist remover and the water content is very high. The waste is a strong alkali. It is hazardous and it must be handled carefully in transport and disposal not to spill it. The waste, after dewatered by the TV-50F, is like grated cheese and it won’t drip the remover solution, which leads to the improved working environment for transport and disposal.
Easy Operation & Maintenance
There aren’t many daily maintenance items, and on top of that, there are no complicated operations required. Furthermore, it does not require any special knowledge or skills, making it an easy-to-use product.
Power-saving Operation
The screw that rotates inside the filtration unit of VOLUTE™ operates at an extremely low speed of approximately 2 to 4 rpm, resulting in very low power consumption and economical operation.
Low Noise/Low Vibration
As our product does not have a high-speed spinning unit, there is no need for noise or vibration concerns, as such, no preventative measures need to be put in place for noise pollution. Additionally, as there is no vibration from the machine itself, any kind of flooring modifications to accommodate vibrating machines will be unnecessary.

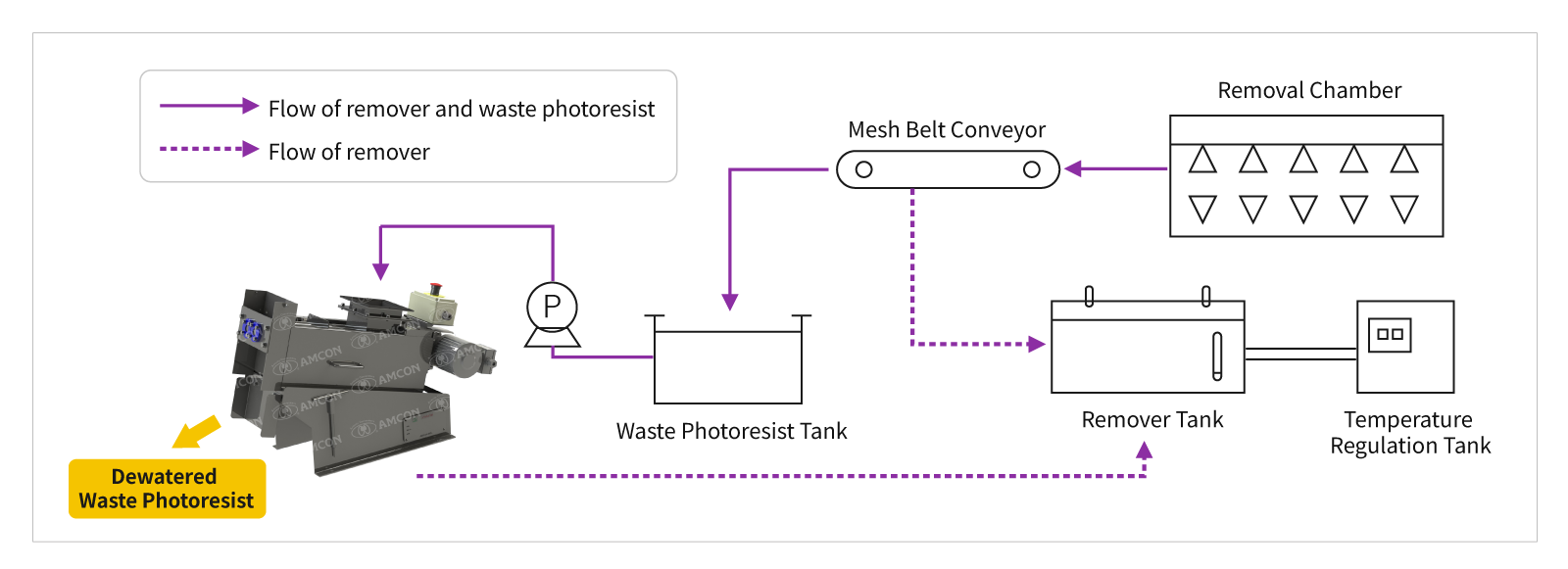

Example of Use
You may wonder, “Can the machine dewater waste photoresist as desired?” or “Is it difficult to operate the machine?” Rental is one of the solutions to eliminate concerns before purchase.
